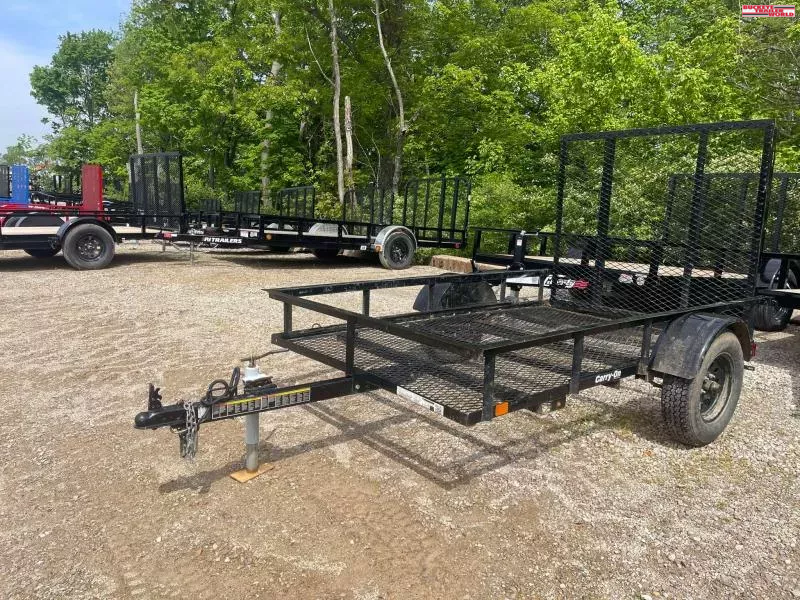

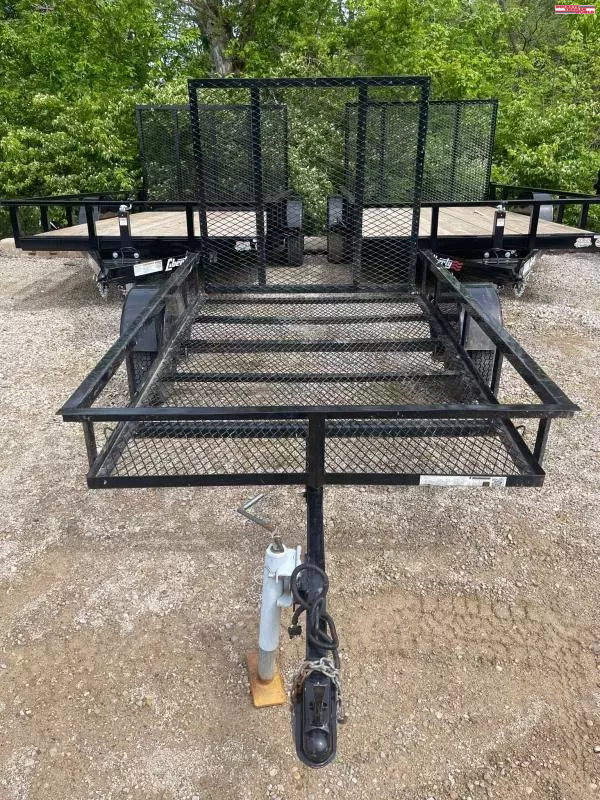

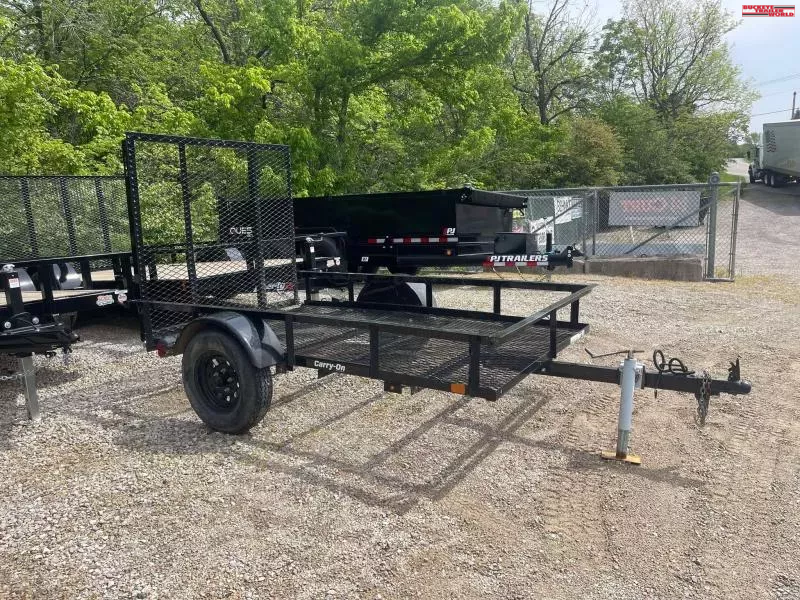

2024 Carry-On 5'X8' Utility Trailer

Disclaimer: We attempt to update our inventory on a regular basis. While great effort is made to ensure the accuracy of the information on our website, errors do occur. So please verify information and pricing of units with a product specialist. This is easily done by calling or by visiting us at the dealership.

Model Information:

• **Overall W x L:**78-3/4" x 138-1/2"
• **Deck W x L:**60" x 96"
• **Gate W x L:**57" x 49"
• **Empty Weight:**400 lbs.
• **Payload Capacity:**1,600 lbs.

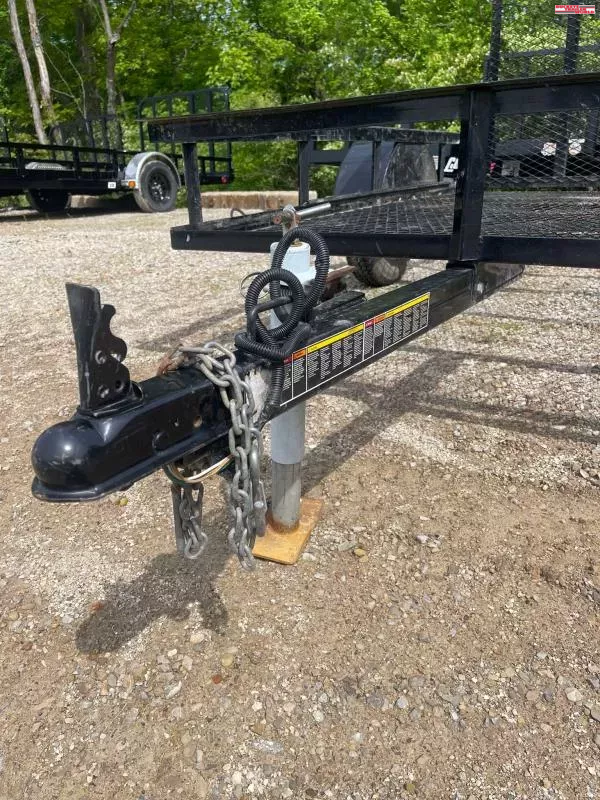

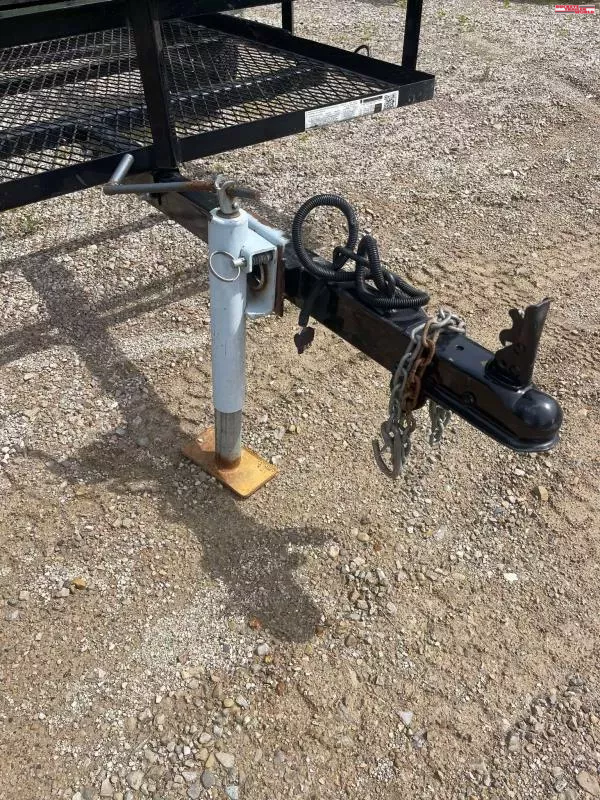

• **Coupler:**2" Straight (199T)
• **Tongue Type:**Straight 2" x 3" Steel Tube
• **Length: Frame to Coupler:**37-3/4"
• **Level Tongue Height:**13-3/4"
• **Safety Chains:**Class I, 24" x 3/16" w/ Hooks (638T)

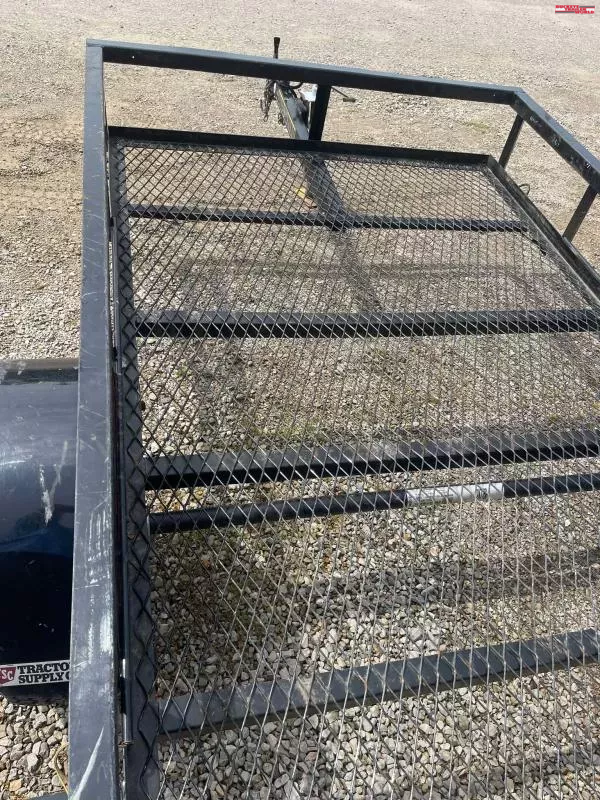

• **Flooring Material:**Steel Mesh
• **Deck Height from Ground:**15-1/4"

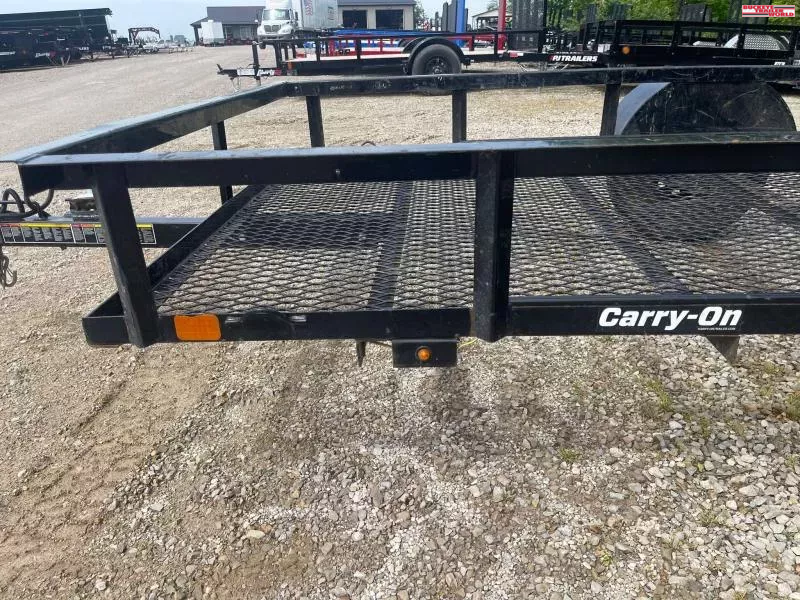

• **Frame:**2" x 2" x 1/8" Steel Angle
• **Uprights:**1-1/2" x 1-1/2" x 1/8" Steel Angle
• **Upright Height:**11"
• **Sides:**Open
• **Top Rail:**2" x 2" x 1/8" Steel Angle
• **Cargo Hold:**4 Steel Angle Brackets

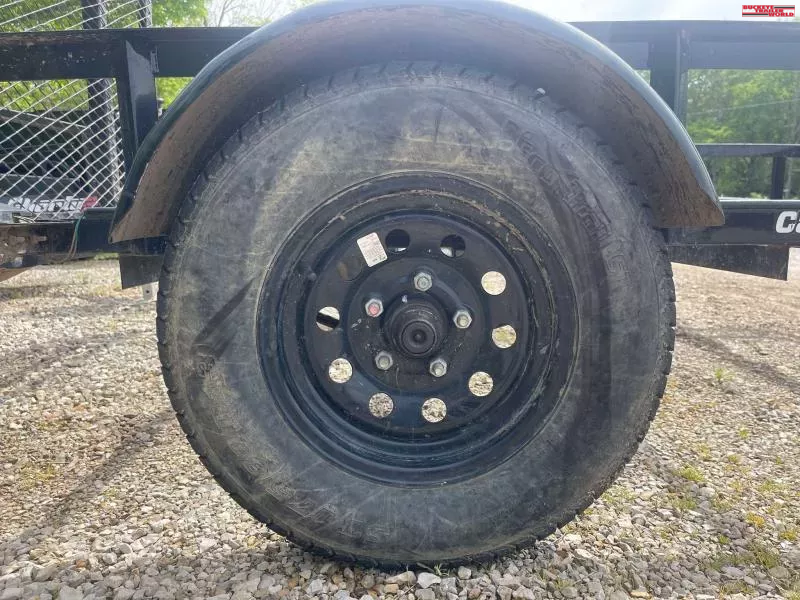

• **Fenders:**9" x 32" Steel Round w/ Back (9320T)
• **Tires:**13" ST175/80D13 (175X13PTW-BLACK)
• **Wheels:**Black Mod

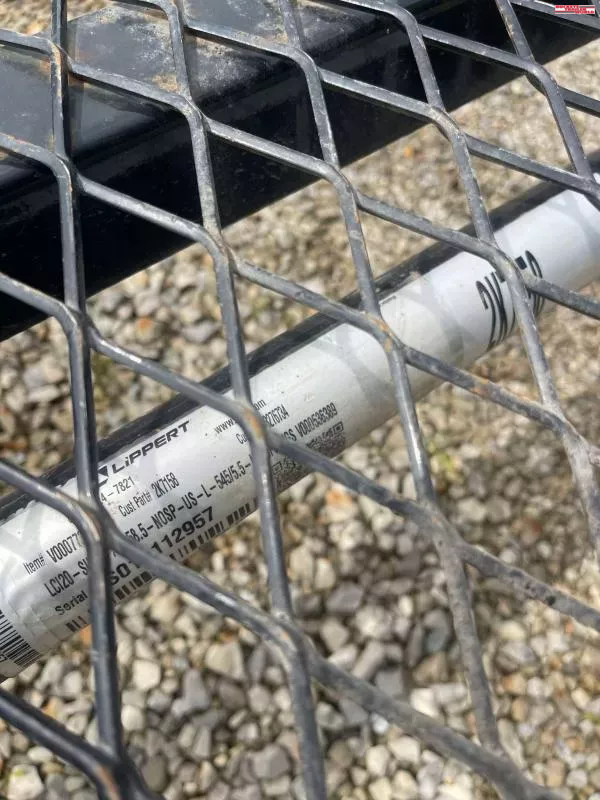

• **Axle Type:**Single 2,000 Lbs. E-Z Lube, 71"/58-1/2" (2K7158EZ)
• **GVWR:**2,000 Lbs.
• **Leaf Springs:**2-Leaf Eye-to-Slipper (351T)
• **U-Bolt:**3/8" Round (652T)
• **Tie Plate:**Small 3-1/2" x 3-1/2" (648T)
• **Hub Kit:**5 Lugs on 4-1/2" Pattern, 1,250 Lbs. (155T)
• **Dust Cap:**E-Z Lube (851T)
• **Spindle:**1-1/16", Max 1,250 Lbs. Capacity (151T)
• **Bearing:**1-1/16" Inner and Outer Bearing Kit (500T)
• **Grease Seal:**1-1/2" (495T)

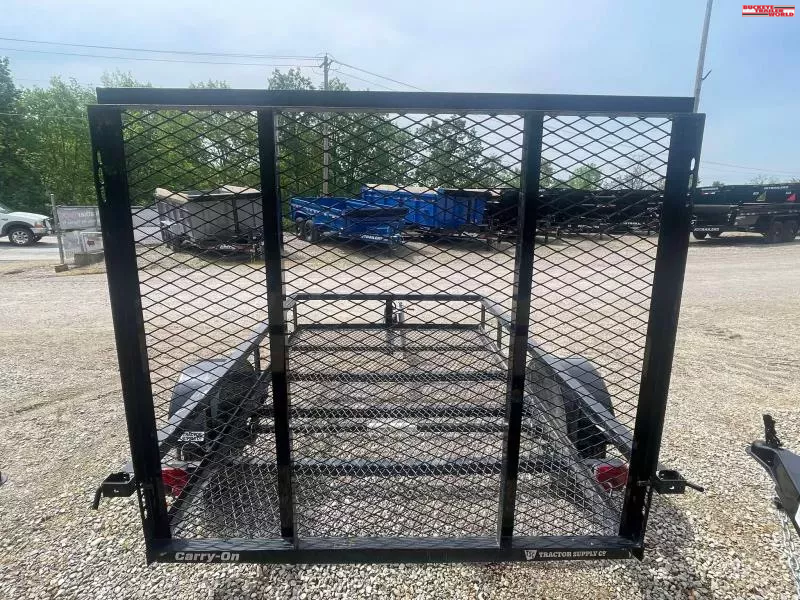

• **Gate Style:**Fixed Ramp Gate

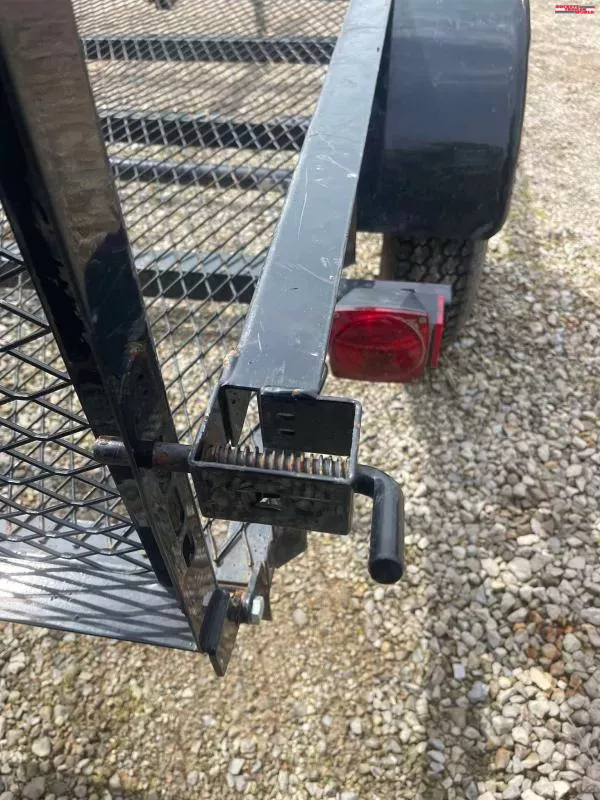

• **Rear Latch:**Spring Latch (847T)
• **Plug Type:**4-Way Flat
• **Tail Lights:**Roadside (813T), Curbside (814T)
• **License Plate Illumination:**Incorporated with Roadside Tail Light
• **Marker Lights:**Amber, Surface Mount (817-2T)
